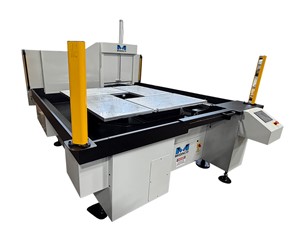

Automatic 4-Pallet Pool for VMC
This series is for the Continental United States only. For International CE series Click Here
Whether running high volume production of the same part or programming several different set-ups, MIDACO's Automatic 4-Pallet Pool will extend operator walk-away time and maximize productivity on your new or existing vertical mill with 4 pallets on 1 shuttle. Save money by increasing spindle utilization during the machining process and quote more competitively. See Brochure PDF
ONE Shuttle + FOUR Pallets = QUADRUPLE the Walk-Away Time
Full 360 degree rotation of the shuttle's pallet carrousel.
Once a job cycle is complete, pallets will rotate automatically on the shuttle carrousel, ready and scheduled to feed your VMC for multiple hours of unattended machining.
Servo driven with +/-0.0001" (0.0025mm) repeatability
The shuttle's servo drive transfers the next pallet onto the cast iron receiver mounted directly onto the machining center table. Durable precision ground steel rails and hardened locating pins/bushings assure +/- 0.0001” (0.0025mm) repeatability.
Specifications:
- 1- servo drive shuttle system with automatic door and light curtain.
- 4 - aluminum pallets, sizes at 28" x 16" (711mmx381mm).
- 1 - cast iron receiver from 500 lb (226kg) weight capacity per pallet {with weight evenly distributed}.
- Control panel is fully integrated with the VMC via M-codes.
Light Curtain
With safety guarding via a light emitter, mirrors and sensors, a pallet change will not occur if the invisible light beams surrounding the shuttle system are breached.
MIDACO's Automatic 4-Pallet Pool is also available as a Dual System with one shuttle mounted on each side of the VMC, supplying a total of 8 pallets.
